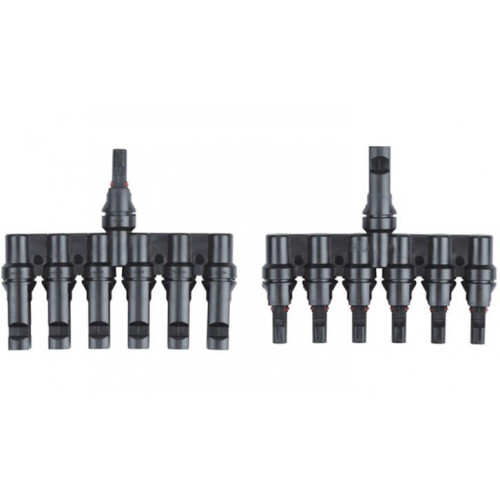

Solar T6 Branch Connector Set

Price per set as shown

Contact Material: Copper Alloy, Tin Plated

Insulation Material PPO

Suitable Current 30A

Rated Voltage 1000V (TUV) 600V (UL)

Test Voltage 6KV (TUV50HZ. 1min)

Contact Resistance <0.5m

Degree of Protection IP67

Ambient Temperature Range -40°C-+85°C

Flame Class UL94-VO

Safety Class II

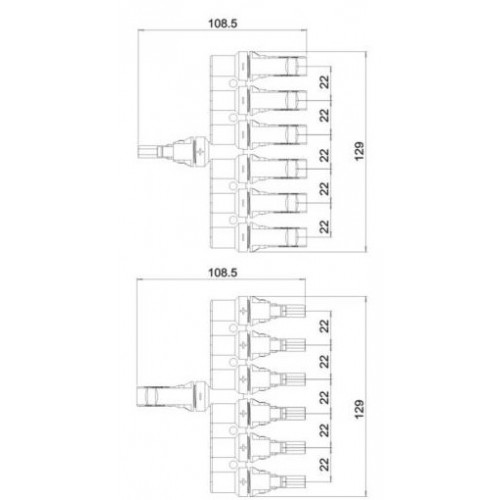

Pin Dimensions Ø4mm
