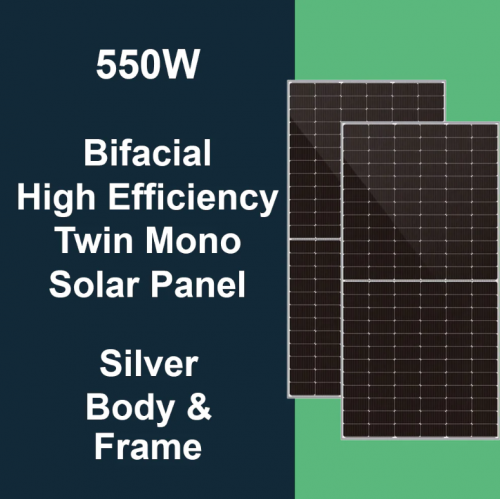

V-Pro 550W - Twin Mono Solar Panel | Silver Body and Frame | 31 Panels

Product Benefits:

• HALF-CUT TECHNOLOGY: Unique circuit design to reduce temperature heat spots
• SIGNIFICANTLY AVOIDING HEAT SPOT: The unique circuit design reduces the temperature heat spot significantly to reduce the power loss and then increase the output of modules
• LOWER COST: Increasing power generation can reduce the cost per kilowatt-hour
• EXCELLENT PERFORMANCE OF PID RESISTANCE: The performance of PID resistance (Potential Induced Degradation) passed the standard of TUV Nord
• UP TO 10-YEAR WARRANTY: PRODUCT MATERIAL & WORKMANSHIP
• 25-YEAR WARRANTY: LINEAR POWER OUTPUT

Features:

• 550W Silver Body & Frame

• Efficiency: 21.28%

• Width: 1134mm

• Height: 2279mm

• Built-in Half-Cut Technology
• High-Efficiency Mono PERC module

Solar Panel Warranty:

• 12-Year Warranty on Product Material and Workmanship
• 25-Year Warranty on Linear Power Output

System Specs:

• 31 Panels - 17.05kW Solar Panel System

Product Video:

Solar Panel Specification:

Peak Power(Pmax)	550.00
Max Power Voltage(Vmp)	41.96
Max Power Current(Imp)	13.11
Open Circuit Voltage(Voc)	49.90±3%
Short Circuit Current(Isc)	14.00±3%
Module Efficiency( % )	21.28
Cell Type	182*91 Mono-Crystalline
No. of Cells	144 (12x12)
Front Glass	3.2mm Ultra Clear Embossed Tempered Coated Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68
Output Cables	4mm2 symmetrical lengths 1300mm (Inc MC4 Connector)
Max Wind Load / Snow Load	2400Pa/5400Pa
Net Weight	29kg
Width	1134mm
Height	2279mm
Depth	35mm
Max System Voltage (V)	1500 V
Max Series Fuse Rating (A)	25 A
Power Tolerance	0-+3W
Nominal Operating Cell Temp	44±2°C
Operating & Storage Temp	-40-+85°C
