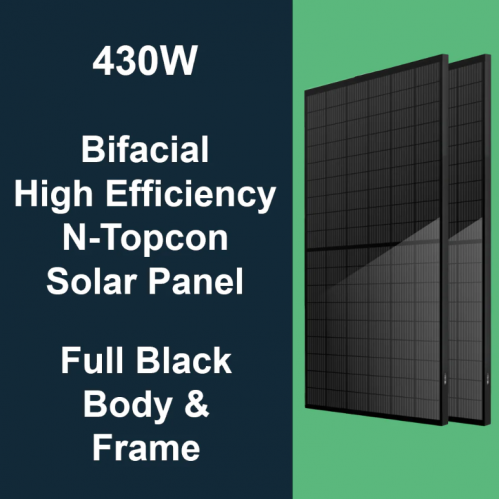

430W - N-TOPCon Bifacial High Efficiency Solar Panel | All Black Body and Frame | 36 Panels

Product Benefits:

• HALF-CUT TECHNOLOGY: Unique circuit design to reduce temperature heat spots
• SIGNIFICANTLY AVOIDING HEAT SPOT: The unique circuit design reduces the temperature heat spot significantly to reduce the power loss and then increase the output of modules
• LOWER COST: Increasing power generation can reduce the cost per kilowatt-hour
• EXCELLENT PERFORMANCE OF PID RESISTANCE: The performance of PID resistance (Potential Induced Degradation) passed the standard of TUV Nord
• UP TO 10-YEAR WARRANTY: PRODUCT MATERIAL & WORKMANSHIP
• 25-YEAR WARRANTY: LINEAR POWER OUTPUT

Features:

• 410W All Black Mono Panel

• Efficiency: 22.02%

• Width: 1134mm

• Height: 1722mm

• 1 Meter Cable Included
• Built-in Half-Cut Technology
• High-Efficiency Mono PERC module.

Solar Panel Warranty:

• 10-Year Warranty on Product Material and Workmanship
• 25-Year Warranty on Linear Power Output

System Specs:

• 36 Panels - 15.48kW Solar Panel System

Product Video:

Solar Panel Specification:

Peak Power(Pmax)	430.00
Max Power Voltage(Vmp)	32.07
Max Power Current(Imp)	13.41
Open Circuit Voltage(Voc)	38.35±3%
Short Circuit Current(Isc)	14.06±3%
Module Efficiency( % )	20.97%
Cell Type	182*91 TOPCon
No. of Cells	108 (6*18)
Front Glass	2mm High Transmission, Low Iron, Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68
Output Cables	4mm2 Cable 100cm (Inc MC4 Connector)
Max Wind Load / Snow Load	2400Pa/5400Pa
Net Weight	24.8kg
Width	1134mm
Height	1722mm
Depth	30mm
Max System Voltage (V)	1500 V
Max Series Fuse Rating (A)	30 A
Power Tolerance	0-+5W
Nominal Operating Cell Temp	43±2°C
Operating & Storage Temp	-40-+85°C
