EV-65-BLACK

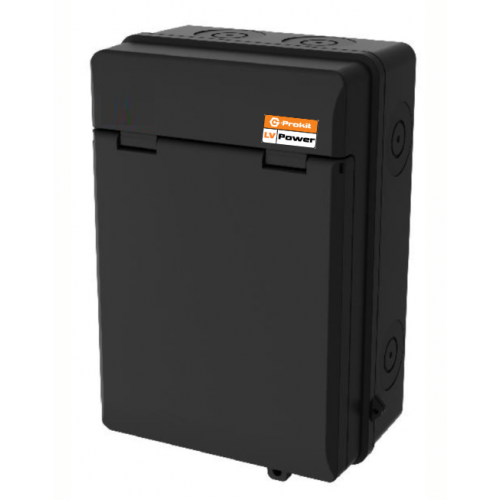

5 module IP65 Metal EV Enclosure with A Type Bi-Directional RCBO and SPD

RCBO Options: 32a or 40a, B or C curve

Please select your RCBO amperage and curve from the drop-down menu

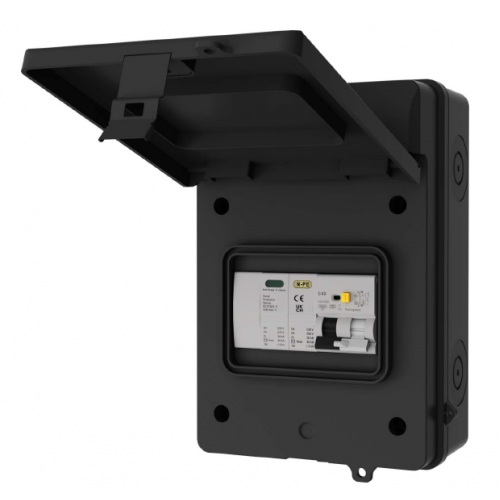

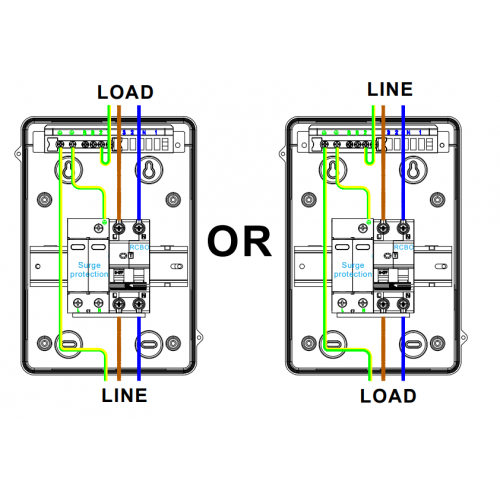

EV-65-BLACK enclosures are ideal for electrical vehicle outdoor installations. Supplied with an A- type double-pole bi-directional RCBO which detects AC and pulsating DC earth leakage up to 6mA.

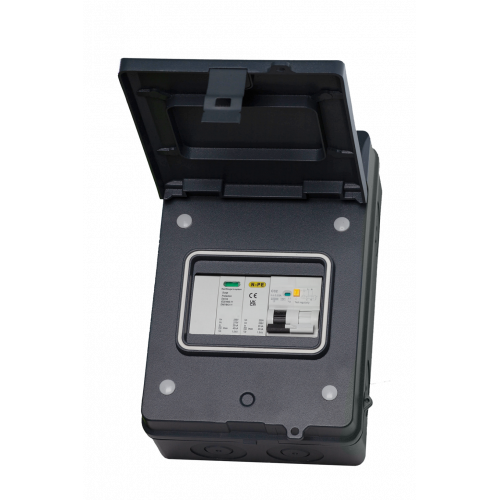

Features a twin handle RCBO system. The black handle controls the MCB function, the white handle controls RCD function. If only the black handle trips, it indicates overload or short circuit. If both the white and black handle trip, it will indicate residual current fault.



This will assist the electrician to solve the electrical fault quickly, saving time and money.



Customer Information

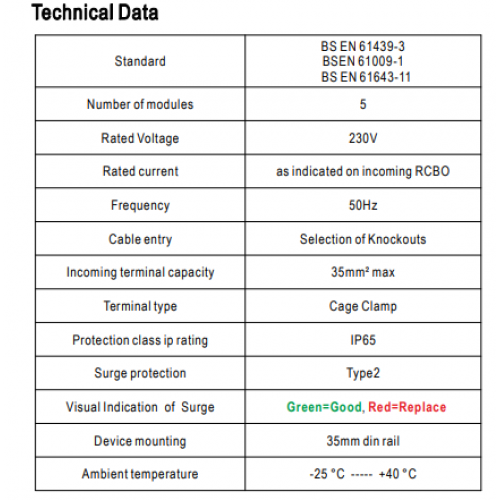

In line with the current BS7671 wiring regulations, the test button (T) must be operated monthly. If unit fails please consult your installer. In the event of the unit tripping, return handles to the on position. If they continue to trip or fail to reset please consult your installer. Standard BS EN 61439-3 BSEN 61009-1 BS EN 61643-11 Number of modules 5 Rated Voltage 230V

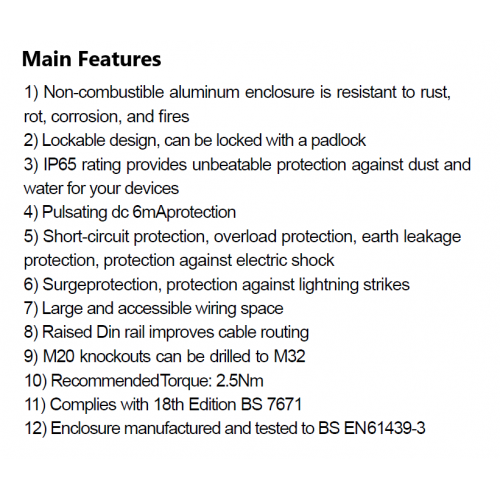

Main features

1) Non-combustible aluminium enclosure is resistant to rust, rot, corrosion, and fires

2) Lockable design, can be locked with a padlock

3) IP65 rating provides unbeatable protection against dust and water for your devices

4) Pulsating dc 6mA protection

5) Short-circuit protection, overload protection, earth leakage protection, protection against electric shock

6) Surge protection, protection against lightning strikes

7) Large and accessible wiring space

8) Raised Din rail improves cable routing

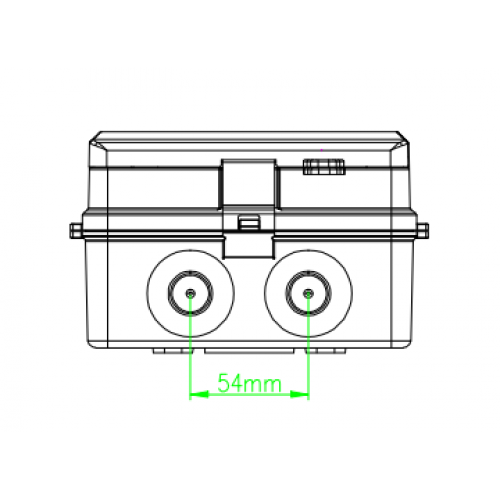

9) M20 knockouts can be drilled to M32

10) Recommended Torque: 2.5Nm

11) Complies with 18th Edition BS 7671

12) Enclosure manufactured and tested to BS EN61439-3
