Our three phase metering kits are made for quick and easy installation. Ideal for retrofit applications.

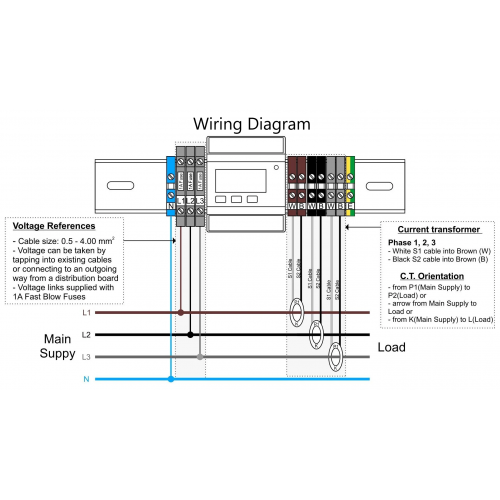

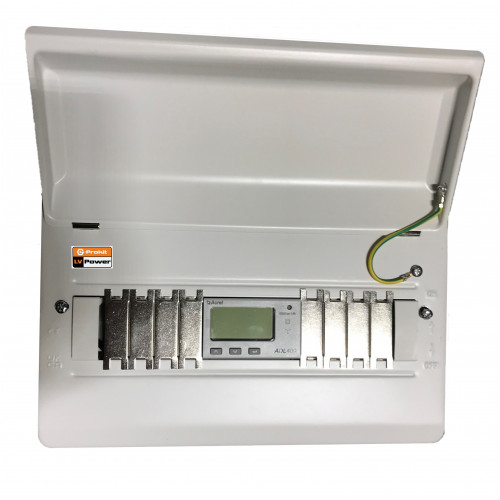

The 14-way metal enclosure has cable entry points on the top, bottom, sides and back and our meter engineers pre-fit the required CT links, voltage reference and earthing with clear labelling. It comes complete with split core CT’s that simply clip around the supplies, saving time and disruption.

This kit is available with an MID approved, single-tariff 3-phase meter 100A-400A, output type RS485 Modbus & Pulse.

The kit comes with 3 x CT’s 100/5 with 24mm aperture covering loads of 100A to 400A.

If you require a different meter or CT to suit your requirements, please contact us and we'll be happy to help.

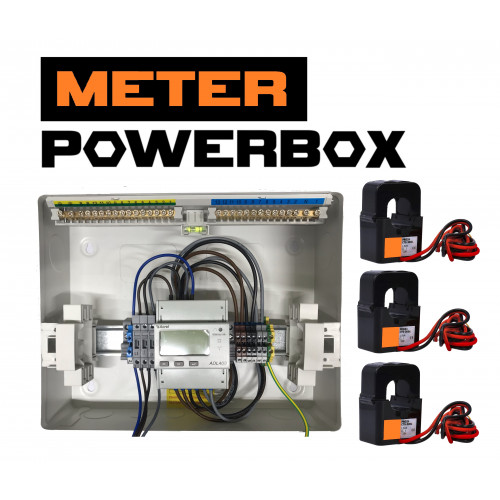

Includes:

• 1 x 3-Phase DIN Rail Meter, rated 100A-400A, MID approved + Modbus
• 1 x Metal 14 Module Enclosure
• 3 x Split Core CTs - 100/5 24mm aperture (other CTs are available - please contact us for details)
• CT links, voltage reference and earthing terminals
• 1m of 1.5mm stranded blue, brown, black & grey cable
• 1m of 2.5mm stranded earth cable

VIDEOS:

DOWNLOADS

Meter Datasheet

Meter Manual

Meter Modbus Protocol

Meter MID Approval Certificate
