100A Input , Bi-directional Active Energy kWh and fixed pulsed output

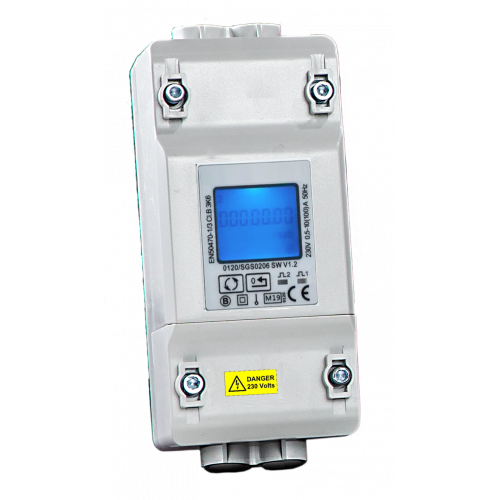

Single-phase multifunction 100A direct fed DIN rail mounted electricity meter. It can measure and display the characteristic of 1p2w supplies. Monitoring active and reactive energy (kWh / kVArh ). Requires mains voltage inputs (Live in and out and Neutral in and out) in order to operate. It is self-supplied so does not require an external auxiliary supply.

KEY FEATURES:

• MID certified
• 100A single phase input
• Class 1 accuracy
• Two module din rail mounted
• Highly visible backlit display
• Fixed pulsed output 1000imp/kWh
• Compact to fit into tight spaces, with a two-part lid for extra safety. Sealed lid screws. IP20

Displayed parameters:

• Total active energy (kWh)

• Total, Imported, Exported and Partial active energy (kWh)

• Instantaneous active power (kW) - Bi-directional

Certifications and standards:

• MID: EN50470-1 & EN50470-3 Class B
• EMC: EN61326-1 & EN61326-2-3
• LVD: EN61010-1 & EN61010-2-3
