Description

KEY FEATURES:

Fully MID approved
RS485 MODBUS protocol
Measures Import and Export Active Energy
Easy-to-read LCD Display
Compact to fit into tight spaces, with a two-part lid for extra safety. Sealed lid screws. IP20.

Three phase 100A energy meter

High quality three phase 100A direct connected meter designed for applications like photovoltaic systems (PV), electric vehicle chargers (EV) and building management systems (BMS). Due to its compact size (4 DIN Module) and easy installation, integration and configuration, the meter will fit in every PV, EV and BMS application that requires (MID) metering.

MID approved

Complies with the Measuring Instruments Directive 2014/32/EU. The MID approval ensures the accuracy and quality of the meter and enables its use in billing purposes. The meter is measuring active energy with accuracy class B (=1) and reactive energy with accuracy class 2. The certificates and other meter specifications can be found in the
user manual
.

Communication

Data from the meter can be collected and programmed via the M-bus, Modbus or Infrared interface. It can communicate and be programmed via the Modbus RTU (RS-485) interface. All meters are equipped with an Infrared interface (for reading and programming) and a selectable pulse output. More information like the Modbus register map, M-bus specifications and infrared user manual can be found in t user manual. The free PC software for infrared communication is available here.

Display pages

Navigation through the display pages of the meter can easily be done by using the arrow shaped buttons on the front of the meter. Information like the meter serial number, current direction, various settings and the following values can be displayed on the LCD:

Active values	Reactive values	Instantaneous values
Active energy (total and per phase)	Reactive energy (total and per phase)	Voltage (per phase)
T1 active energy	T1 reactive energy	Current (per phase)
T2 active energy	T2 reactive energy	Active power (total and per phase)
Forward active energy (total and per phase)	Forward reactive energy (total and per phase)	Reactive power (total and per phase)
T1 forward active energy	T1 forward reactive energy	Apparent power (total and per phase)
T2 forward active energy	T2 forward reactive energy	COS phi (total and per phase)
Reverse active energy (total and per phase)	Reverse reactive energy (total and per phase)	Frequency
T1 reverse active energy	T1 reverse reactive energy
T2 reverse active energy	T2 reverse reactive energy

Settings

Settings can be done manually and with a Modbus, M-bus or Infrared command. The settings can be checked in program mode 1 and changed in program mode 2 or 3. The settings in program mode 3 are password protected.

Modbus/M-bus ID can be set to a value from 1 to 247 (Modbus) and 1 to 250 (M-bus).
Baud rate can be set to 300, 600, 1200, 2400, 4800 or 9600.
Modbus parity can be set to even, none or odd.
Automatic scroll function can be customized by adding and deleting display pages.
LCD cycle time can be set to a scroll time from 1 to 30 seconds.
Backlight mode can be set to ON, OFF or Button mode.
S0 output can be set to 10.000/2.000/1.000/100/10/1/0,1/0,01 imp/kWh.
Calculation mode of the total active energy can be set to 01=forward only, 04=reverse only,
xxx05=forward+reverse, 06=reverse-forward, 09=forward-reverse, 10=forward-reverse and
xxx11=forward-reverse.
Power down counter can be reset to 0.
Password can be changed in program mode 3.

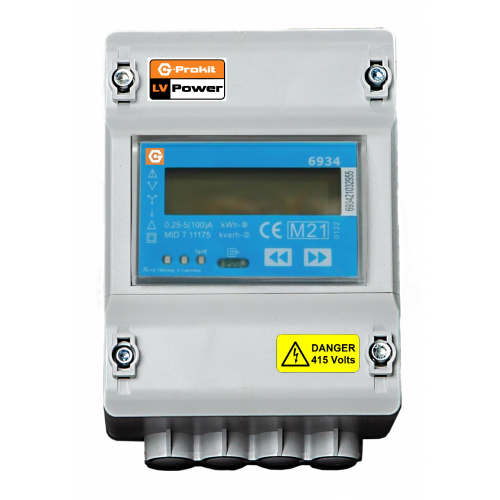

100A Bi-Directional Three-phase compact check meter, Modbus

Product Code: COMPAC-MET-100A-3PHASE-BI
