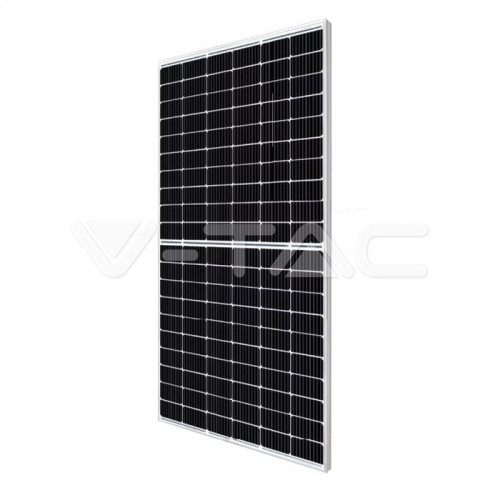

V-Pro 545W Mono Solar Panel - VT-545-36V-MH | 31 Panels

Price for 31 panel pallet quantity

545W Mono Solar Panel 2279x 1134 x 35mm

SKU: 11932 | VT: AU545-36V-MH

CLICK TO VIEW:

DATA SHEET

CE CERTIFICATE

TECHNICAL SPECIFICATIONS

LVD LICENCE

TUV CERTIFICATE

HAIL RESISTANCE TEST REPORT

Specifications

Electrical Data Wattage 545W

Current

• Maximum Power Current(Imp): 13;
• Short Circuit Current(Isc): 13.92±3%;

Voltage

• Maximum Power Voltage(Vmp): 41.93;
• Open Circuit Voltage(Voc): 49.90±3%;

Capabilities

IP Rating Junction box: IP68 3diodes

Working conditions -40°C to +85°C

Dimensions Size 2279x1134x35mm

Product Data

Order code

11932

Product code

AU545-36V-MH

Item Weight

28.4 kg

Additional

Release Date

28.02.2024

Brand

V-TAC

Warranty

12 years product material / 30 years linear power output

Product Video:

Solar Panel Specification:

Peak Power(Pmax)	550.00
Max Power Voltage(Vmp)	41.96
Max Power Current(Imp)	13.11
Open Circuit Voltage(Voc)	49.90±3%
Short Circuit Current(Isc)	14.00±3%
Module Efficiency( % )	21.28
Cell Type	182*91 Mono-Crystalline
No. of Cells	144 (12x12)
Front Glass	3.2mm Ultra Clear Embossed Tempered Coated Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68
Output Cables	4mm2 symmetrical lengths 1300mm (Inc MC4 Connector)
Max Wind Load / Snow Load	2400Pa/5400Pa
Net Weight	29kg
Width	1134mm
Height	2279mm
Depth	35mm
Max System Voltage (V)	1500 V
Max Series Fuse Rating (A)	25 A
Power Tolerance	0-+3W
Nominal Operating Cell Temp	44±2°C
Operating & Storage Temp	-40-+85°C
