PACK OF 5 UNITS

Please select your colour from the drop-down menu

FOR 10+ QUANTITY DEAL PRICE, ADD ITEMS TO YOUR BASKET FROM DROP-DOWN MENU. PRICE WILL RE-CALCULATE WHEN 10+ PACKS HAVE BEEN ADDED TO YOUR BASKET

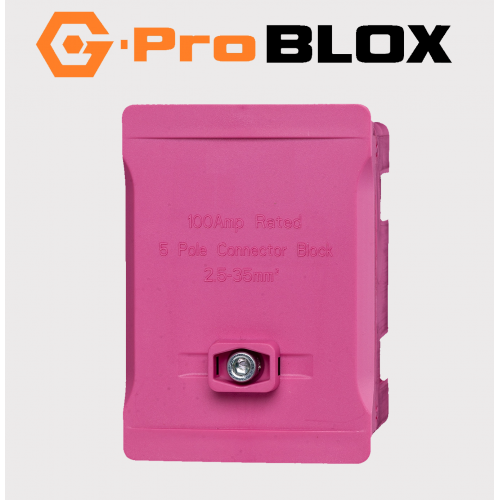

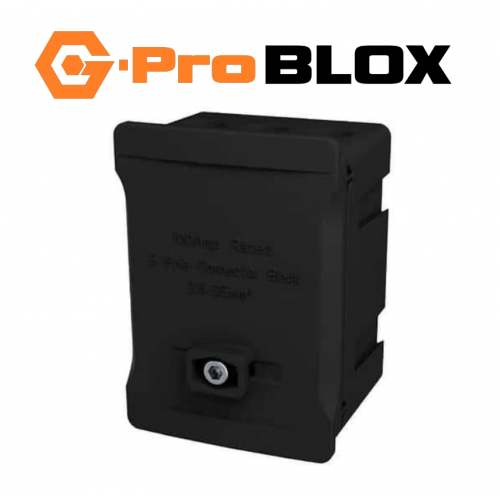

100A 5 Way terminal block is designed to accommodate cables ranging from 2.5 mm to 35 mm , making it suitable for a wide range of applications. Its versatile design allows for easy connection of multiple cables, while its lockable feature and sealable lid provide added security. It comes with blanking pieces, allowing you to seal off unused connection points, ensuring optimal safety. Its hexagon screw ensures that the connections are firmly held in place, providing a reliable and stable connection. Ideal for your electrical connection needs.

MAIN FEATURES:

1) 5 way 100A rated connector block

2) Lockable design, can be locked with wire seal

3) With five connection points, you can easily connect cables

4) Suitable for 2.5mm² to 35mm² cables

5) Unique design allows you to join multiple terminal blocks together

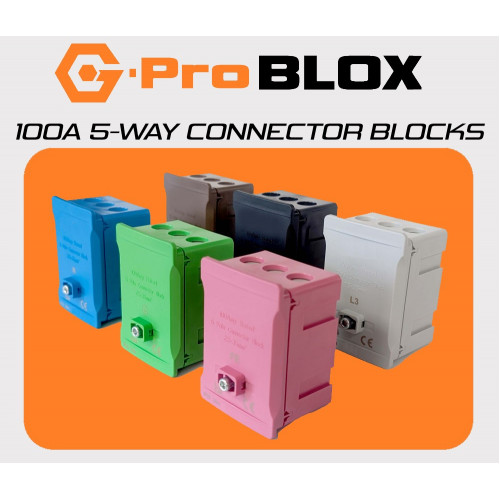

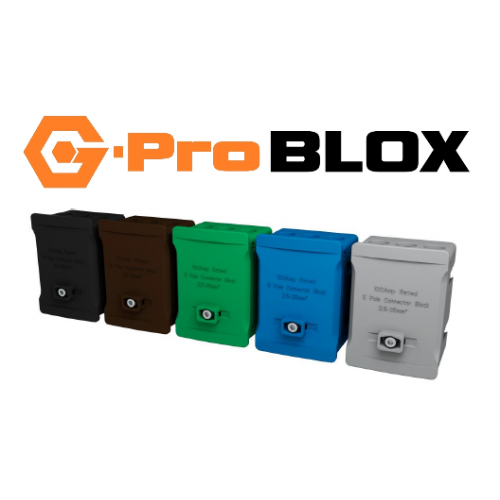

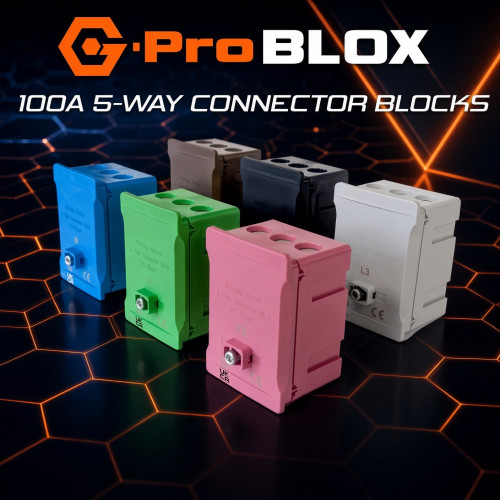

6) Available in 5 colours (brown, grey, black, blue & green)

7) Hexagon screw providing a reliable and stable connection

8) Recommended Torque: 3 Nm

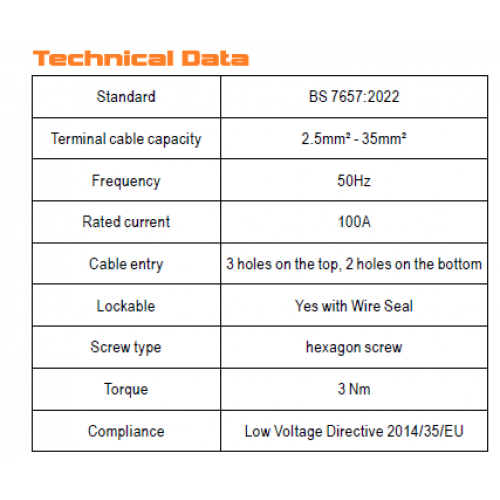

Technical data:

• Standard BS 7657:2022
• Terminal cable capacity 2.5mm² - 35mm²
• Frequency 50Hz
• Rated current 100A

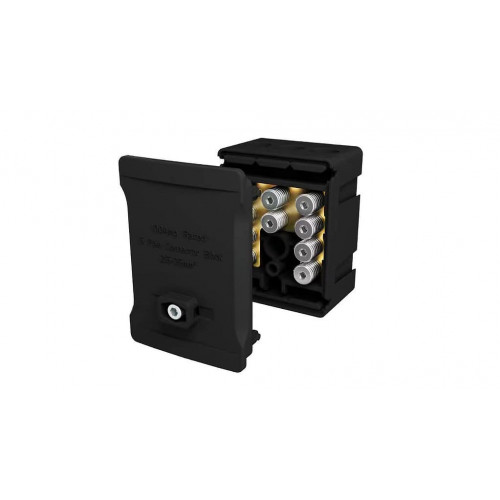

• Cable entry 3 holes on the top, 2 holes on the bottom
• Lockable with Wire Seal
• Screw type hexagon screw
• Torque 3 Nm
• Compliance Low Voltage Directive 2014/35/EU
